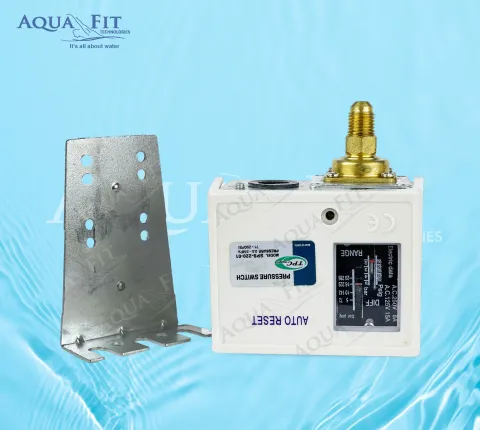

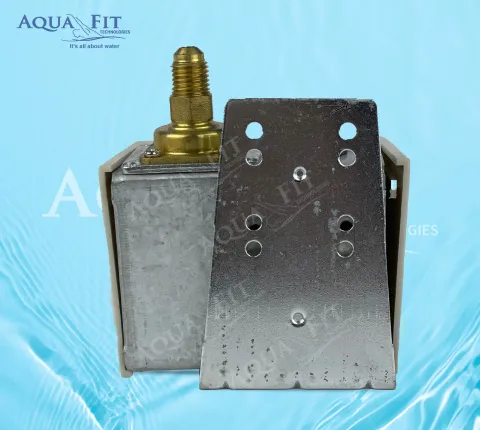

SPS Pressure Switch (SPS-220-01)

Product Description:

The SPS Pressure Switch (SPS-220-01) is a high-quality, reliable device designed to monitor and control pressure in various industrial and commercial systems. This switch is engineered to automatically regulate pressure levels in pumps, compressors, and other pressurized systems by opening or closing electrical contacts when the desired pressure set point is reached.

With its precise pressure adjustment capabilities, the SPS-220-01 is ideal for maintaining optimal system performance, ensuring safety, and preventing damage due to overpressure or under pressure. Its durable construction and compact design make it suitable for a wide range of applications, including water pumps, air compressors, HVAC systems, and industrial equipment.

Key Features of Pressure Switch SPS (SPS-220-01) :

Automatic Pressure Control: Automatically activates or deactivates systems based on preset pressure levels.

Adjustable Pressure Range: Allows for fine-tuned control over the desired pressure set points.

Durable Construction: Built with high-quality materials to withstand harsh industrial environments.

Compact Design: Space-saving design suitable for a wide range of installations.

Wide Application: Perfect for water pumps, air compressors, HVAC, and other pressurized systems.

High Reliability: Ensures long-lasting performance with minimal maintenance.

Applications of Pressure Switch SPS (SPS-220-01):

Water Pumps: Automatically control pump operation to maintain consistent water pressure.

Air Compressors: Regulate air pressure in pneumatic systems.

HVAC Systems: Monitor and control pressure in heating, ventilation, and cooling systems.

Industrial Machinery: Manage pressure levels in various industrial processes.

Specifications:

Specification	Details
Model	SPS-220-01
Pressure Range	0.1 MPa – 1.0 MPa (1 bar – 10 bar)
Max Operating Pressure	1.5 MPa (15 bar)
Switch Type	SPDT (Single Pole Double Throw)
Operating Voltage	220V AC / 110V AC / 24V DC
Max Current	16A (220V AC)
Connection Type	1/4" NPT or custom
Material	Stainless Steel / High-quality plastic
Operating Temperature	-10°C to 80°C (14°F to 176°F)
Accuracy	±3% of full scale
Protection Rating	IP65 (dust-tight and water-resistant)
Dimensions	120 x 75 x 55 mm (4.7 x 2.9 x 2.1 inches)
Weight	0.5 kg (1.1 lbs)
Certifications	CE, RoHS

The SPS Pressure Switch (SPS-220-01) is a versatile, precise, and durable solution for controlling and regulating pressure in various systems. Its adjustability, durability, and ease of installation make it an excellent choice for both commercial and industrial applications.
