3" Flanged Water Meter CWFA 80

description
review

Introduction

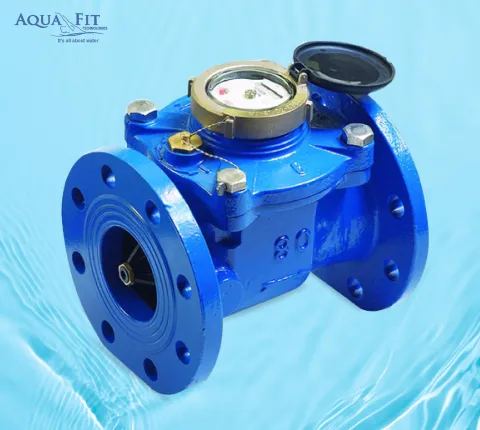

The CWFA 80 is a 3" flanged contacting head water meter, manufactured with a cast iron body for use with clean water and ideally suited for process applications where accurate measurements of large volumes of water flow are required.

Designed for use with clean water, such as towns water, the CWFA 80 is rated to a temperature up to 30°C and a pressure of up to 16 Bar. The CWFA 80 may be installed in any position and provides precision flow measurements with a maximum normal flow rate of 40 m3 / Hr.

The robustly constructed water meter is designed to be bolted to connecting flanges in pipework to become a permanently installed flow meter, allowing the 3" (80mm) flanged water meter to measure the flow passing through it.

The 3" flanged water meter CWFA 80 has a high sensitivity turbine impulse sensor which drives a large accurate gear train to provide both totalisation and the pulsed output.

By design, the turbine is the only moving part of the water meter that is in contact with the water itself. This is so that we can offer exceptional operating life from our CWFA series of flanged water meters.

Pulsed Output

The turbine sensor is both antimagnetic and non-hygroscopic and drive a large and accurate gear train.

The resulting digital signal is pulsed via volt free contacts proportional to the flow rate - the K Factor of the 3" (80mm) Flanged Water meter CWFA 80 is K = 100.0 or K = 1000.0 giving 1 pulse per 100 litres or 1000 Litres respectively.

The pulsed output signal is rated at 24 V - 0.2 A and the supplied cable length is 2 metres.

The CWFA 80 can be easily integrated into a dosing pump; batch controller; external counter or other piece of process control equipment that corresponds to a pulsed input, proportional to liquid flow rate.

Features & Benefits

The CWFA 80 is an excellent way of measuring clean water entering a process. Used frequently on evaporative cooling tower make up water, softener feed water, in plating baths makeup water, to control flow proportional dosing and in any application where the volume of water flowing in a pipeline needs to be accurately measured.

The CWFA 80 is of simple design and proven construction. Designed to provide reliable, accurate and dependable measurement and control of many industrial processes, the CWFA 80 is a water meter with 3" (80mm) flanged connection, so securing it in place for a long operational life is as simple as possible.
